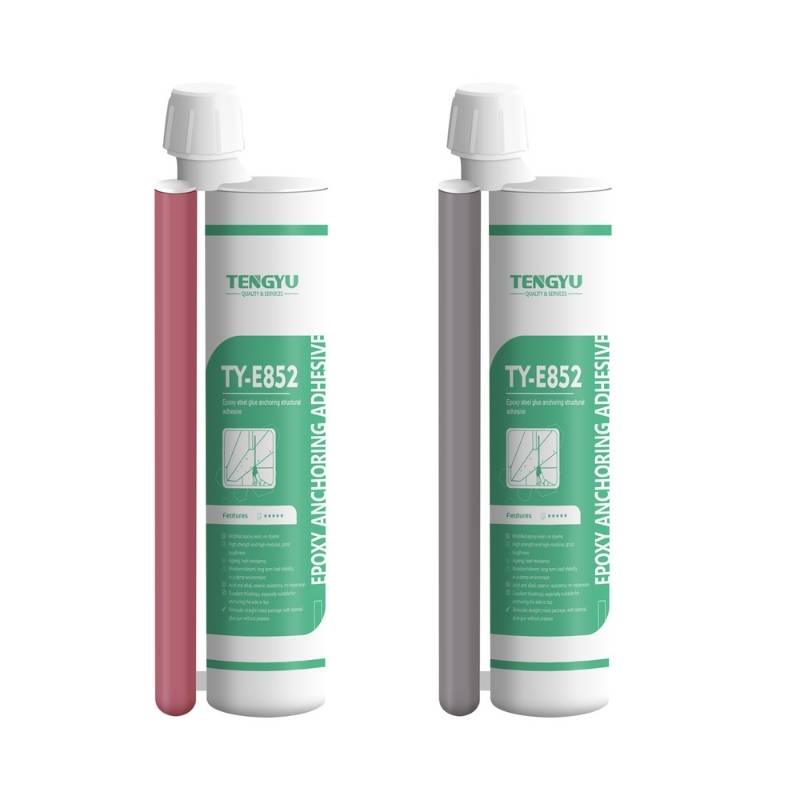

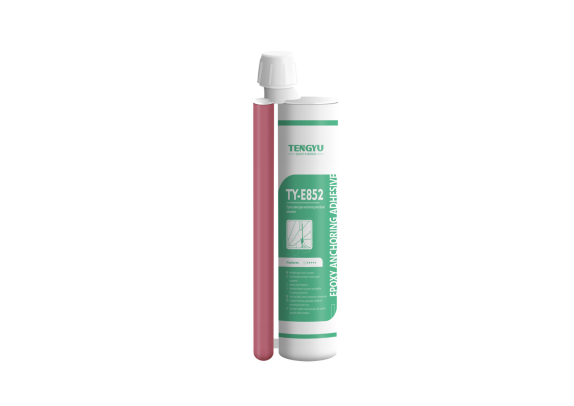

TY-E852
TENGYU
360ml
| Quantity: | |
|---|---|
TY-E852 Epoxy chemical anchor adhesive is a fast curing, multi-purpose, two components modified epoxy resin
anchor system for threaded bars and reinforcing bars in both cracked and uncracked concrete.
Ambient Temperature °C | Operable time (min) | Curing Time |
-5 | 60 min | 72 h |
0 | 45 min | 48 h |
10 | 30 min | 24 h |
20 | 15 min | 16 h |
≥30 | 20 min | 8 h |
Appearance A Part (Epoxy) | White paste |
Appearance B Part (Hardener) | Red paste ,Grey paste |
Viscosity of mixture | 18-22 pa·s |
Density after curing | 1.5±0.10 g/cm³ |
Mixture ratio (weight ratio) | 5:1 |
Performance Indexes
10.09Mpa | ||
Flexural strength | 77.4Mpa,and No rupture-like damage | |
Compressive strength | 98.8Mpa | |
Steel-steel tensile anti-shear strength | (23±2）℃（50±5）%RH | 17.3Mpa |
Bonding strength between ribbed steel bars (or full screws) and concrete under constrained pull-out conditions | C30, Φ25, L=150mm | 21.9Mpa |
Non-volatile matter content (solid content) | 99.1% | |
Steel bar diameter | Drilling diameter | Tensile design value-deep burial 10d(KN) | Tensile design value-deep burial 15d(KN) |
10 | 14 | 19.5 | 24.2 |
12 | 18 | 27.2 | 33.1 |
14 | 20 | 36.2 | 46.9 |
16 | 22 | 50.1 | 61.8 |
18 | 25 | 61.5 | 77.7 |
20 | 28 | 81.1 | 96.5 |
22 | 30 | 98.2 | 116.8 |
25 | 32 | 125.2 | 149.3 |
28 | 35 | 155.3 | 187.5 |
30 | 37 | 190.8 | 236.1 |
32 | 40 | 199.1 | 258.3 |
36 | 42 | 237.6 | 309.6 |
40 | 48 | 245.4 | 372.1 |
Anchor bolt size d (mm) | Drilling hole diameter D (mm) | Drilling hole depth T (mm) | Injected colloid volume ML (2/3v) | Theoretical number of implanted steel bars(Pieces) | Remark (buried deeply) |
M8 | 12 | 80 | 6.03 | 59.7 | 10d |
M8 | 12 | 120 | 9.04 | 39.8 | 15d |
M10 | 14 | 100 | 10.26 | 35.1 | 10d |
M10 | 14 | 150 | 15.08 | 23.4 | 15d |
M12 | 16 | 120 | 16.09 | 22.4 | 10d |
M12 | 16 | 180 | 24.12 | 14.9 | 15d |
M14 | 18 | 210 | 35.61 | 10.1 | 15d |
M16 | 22 | 160 | 40.52 | 8.9 | 10d |
M16 | 22 | 240 | 60.79 | 5.9 | 15d |
M18 | 25 | 270 | 88.31 | 4.1 | 15d |
M20 | 28 | 200 | 82.06 | 4.4 | 10d |
M20 | 28 | 300 | 123.09 | 2.9 | 15d |
M22 | 30 | 330 | 155.43 | 2.3 | 15d |
M25 | 32 | 250 | 133.97 | 2.7 | 10d |
M25 | 32 | 375 | 200.98 | 1.8 | 15d |
● It has strong penetrating power and can penetrate into the concrete surface well.
● Aging resistance after curing, excellent water resistance and chemical corrosion resistance.
● The cured adhesive layer has excellent mechanical and mechanical properties and has certain toughness.
● Modified epoxy resin, styrene-free, safe and non-toxic.
● High strength, strong adhesion, good toughness, the effect
is equivalent to pre-embedded.
● Low moisture sensitivity, long-term load stability in humid environments.
● Resistant to acid and alkali, good shock resistance, no expansion stress fixation.
● It has good thixotropy and is especially suitable for
anchoring and planting reinforcement on the side or
top surface.
● Injection type operation, no need for manual mixing, shortening the construction progress.
● Planting and rooting of shaped anchor bolts and screws in the base material in curtain wall engineering
● Planting of steel bars in reinforcement and renovation projects.
● Installation of various equipment, pipelines, and fixing of curtain wall brackets.
●Bonding and fixing of wooden components, plastic components and metal components.
● When stored correctly, the shelf life will be at least 12 months from the date of manufacture.
● Cartridges should be stored in their original packaging, the correct way up, in cool conditions (+50°F to +77°F)
and out of direct runlight.
