TA104
TENGYU
280ml 300ml 600ml
White,Black,Grey,Customized Colors
| Quantity: | |
|---|---|
Intumescent acrylic sealant is a one part, ready to use,designed for duct work and in addition used for joints incompartment walls and floors, fire sealing expansion joints,sealing metal pipes, bundled cables and aroundlightweight partition, around fire rated doors and inservice penetration seals where integrity of fire walls orpartitions needs to be maintained.Intumescent qualities enable the materials to swell underheat conditions, producing a fire and smoke resistant seal.
Intumscent Fire Rated Sealant Technical Data
Appearance | Paste |
Density | 1.60±0.05g/cm³ |
Extrusion | 120ml |
Slag | 0 |
Tack-free time | 15 min |
Elongation at break | 100% |
Fire Protection Level | V0 |
Expansion Rate | 5-6 |
Volume Change Rate | 25% |
Curing Time | 2-3mm/24h |
Application Temperature Rang | 5℃ to 40℃ |
Service Temperature Range | -40℃ to 70℃ |
Hard Shore A | 60 |
● As sealant for up to 4 hours rating.
● Stability, Integrity & Insulation
● 5~6 times expansion rate
● Excellent adhesion to most common constructionsubstrates.
● Ready to use
● Duct work
● Fire sealing expansion joints

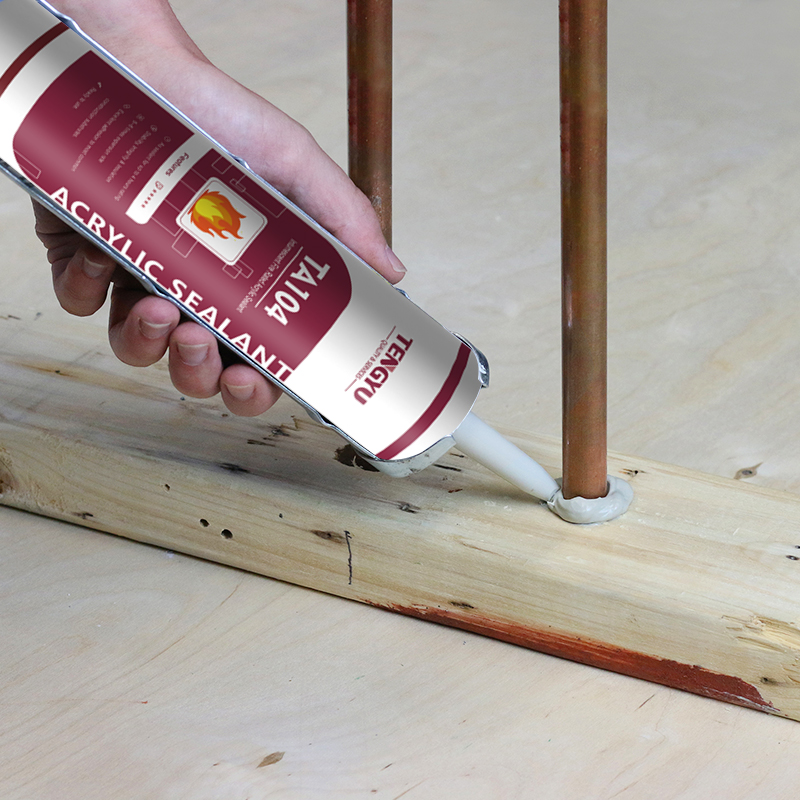

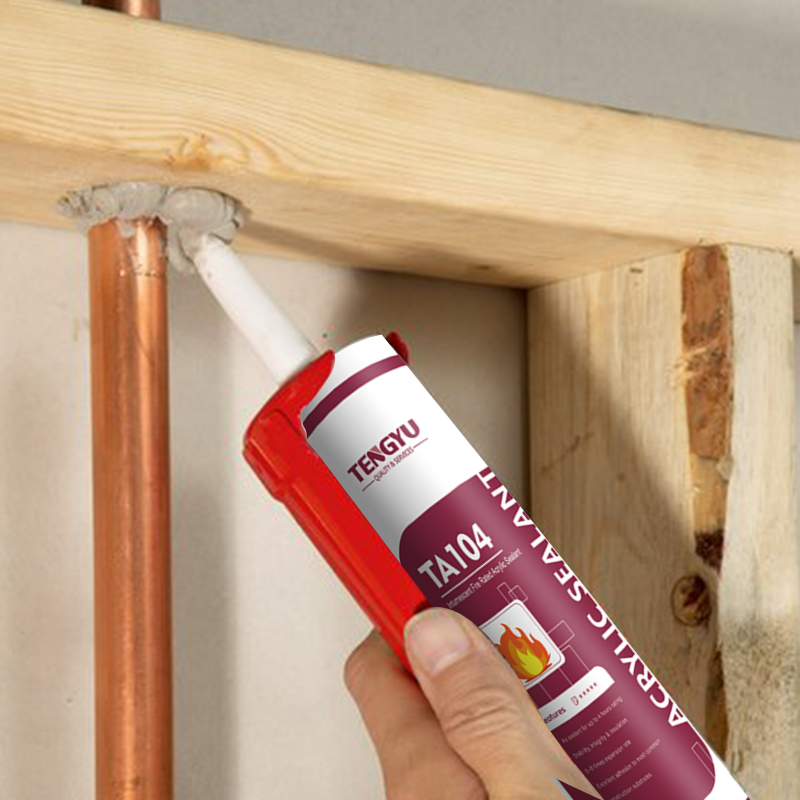

● Metal pipes
● Cable bundles
● Perimeter around Fire Rated door assembles
● Keep contents out of reach of children. In case of contactwith eyes, please rinse eyes with plenty of water and seekmedical advice as soon as possible
● Store in a cool, dry, non-humid place to ensure long shelf life
